JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions

  • 1
  • 2

Brand Name : JUYI

Model Number : JY2605M

Certification : ISO

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C,T/T,Paypal

Supply Ability : 10000pcs/day

Delivery Time : 3-5 working days

Packaging Details : PE bag+ carton

Model : JY2605M

Speed Adjustment : Linear

Packaging Specifications : QFN5*6

Application : Power Switching application,Electric Vehicles, Industrial Automation, Robotics

Pulsed Drain Current : 185A

Drain-Source Voltage : 60V

Gate-Source Voltage : ±20V

Operating Junction and Storage Temperature Range : -55 to +175℃

Sensor : Hall sensor or sensorless

Technical Support : Yes

Contact Now

JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
GENERAL DESCRIPTION

The product utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.

FEATURES
  • 60V/50A, RDS(ON) =14mΩ@VGS=10V(typical)
  • Fast switching and reverse body recovery
  • Fully characterized avalanche voltage and current
  • Excellent package for good heat dissipation
APPLICATIONS
  • Power Switching application
  • Synchronous rectification
  • Motor drive for 12V-24V Systems

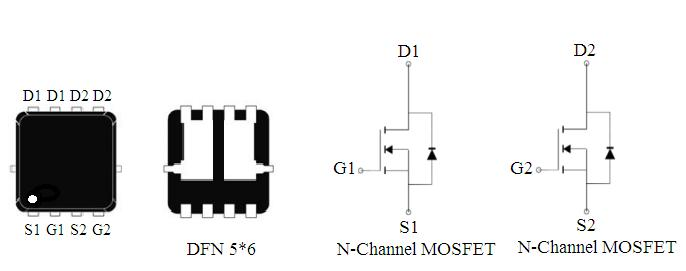

PIN DESCRIPTION
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
Typical electrical and thermal characteristics
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
DFN5*6 Package Outline
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
